Description

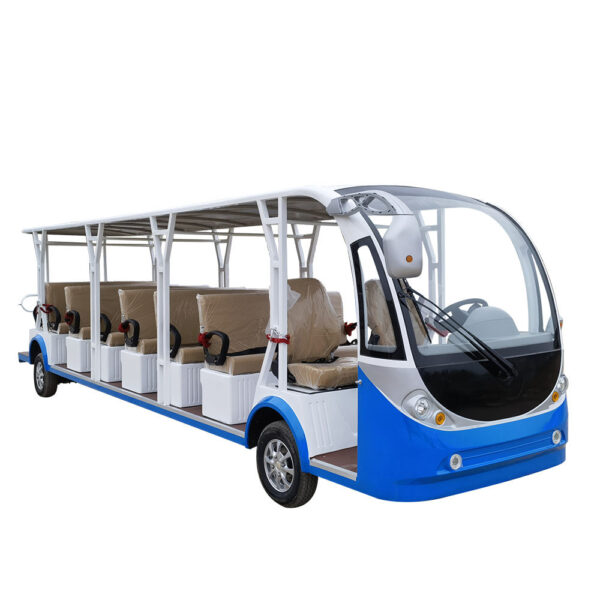

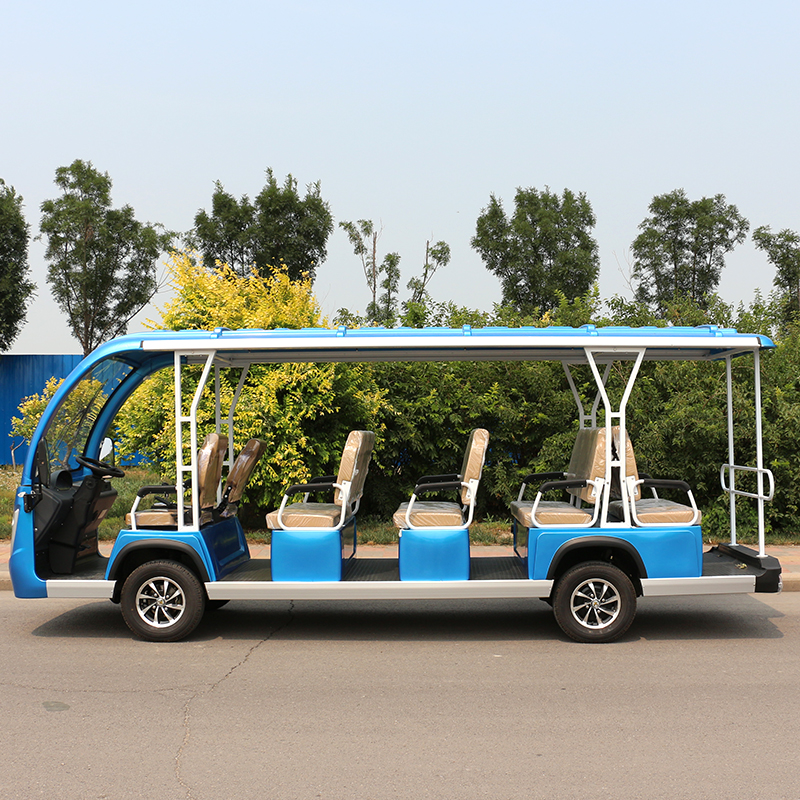

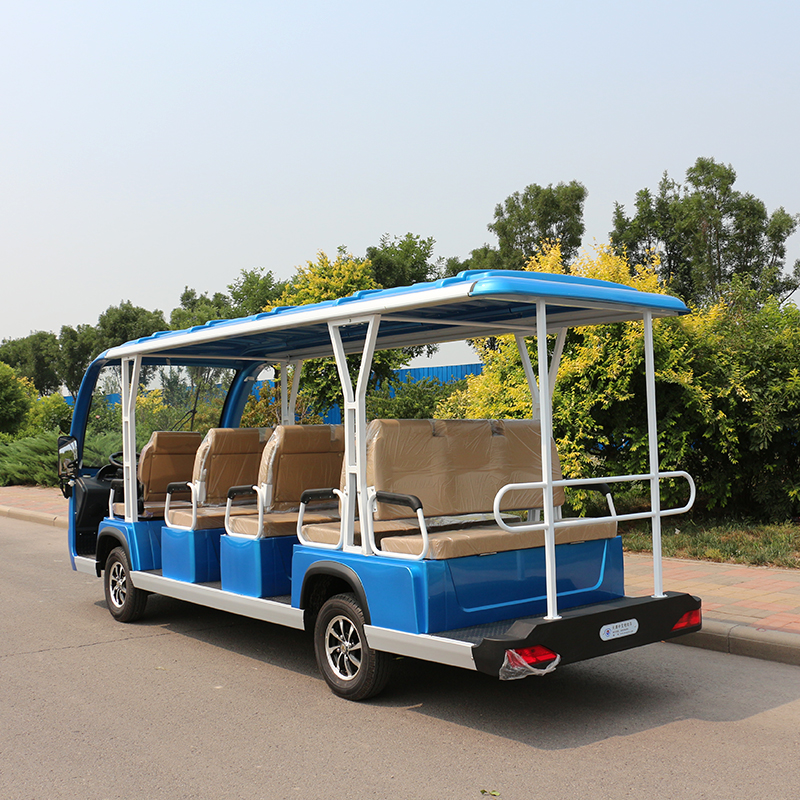

| 14 Seater Electric Sightseeing Bus | ||
| Model | A14 | |
| System | 48V /5KW AC system | |
| Unit price(FOB Tianjin) | ||
| Key Components | ||
| Battery | Huge capacity deep cycle lead-acid battery 6V/piece 8 pieces,210Ah | |
| Motor | 5KW AC motor | |
| Controller | USA brand Curtis 1232(400A) | |
| Charger | On board 72V/30A | |
| Performance | ||
| Passenger capacity | 14 | |
| Range (loaded) based on flat road at a speed of 20km/h | 80-100 km | |
| Max. speed | 30km/h | |
| Minimum turning radius (m) | 5.4m | |
| Max. climbing ability (loaded) | 15% | |
| Max. braking/stopping distancee | 3.3m(from 20kmh to 0) | |
| Cart’s weight(w/batteries) | 1070kgs | |
| Dimensions | ||
| Overall dimensions:LWH (mm) | 5180×1510×2125mm | |
| Min. ground clearance (mm) | 140mm | |
| Axle distance | 2840mm | |
| Wheelbase (mm) | front 1240mmmm/ rear 1220mm | |
| Body and Frame | ||
| Frame | All aluminum frame | |
| Body | Moulded injenction plastic PP | |
| Roof | Injection moulded modeling design separable replacement | |
| Seats | Sponge&artificial Leather,adjustable driver’s seat | |
| Dashboard | Plastic molding instrument board with volt meter, ammeter, electricity indicator, speedometer,key switch, radio, USB plug, storage box, cup holder | |
| Tires | Aluminum hub wheel 155R12C | |
| EPS | Electric Power Steeing is equipped | |
| Chassis | High strength structural steel | |
| Steering | Gear steering+ auto backlash compensation | |
| Braking System | Front disk +rear drum ,double circuit hydraulic brake+ hand brake | |
| Front Axle | Mcpherson independent suspension Spiral spring + cylinder hydraulic shock absorption | |
| Rear Axle | Strengthen 16.7 Integral rear axle, Non independent suspension, leaf spring +cylinder hydraulic shock absorption | |
| Detailed Configurations: (“S” stands for Standard configuration and “O” stands for Optional configuration） | ||
| Body And Frame | ||
| Windshield | Laminated glass with wiper | S |
| Seats cover | O | |
| Safety Belts | O | |
| Security light | with loud speaker | O |
| Trailer Hook | O | |
| Body cover | O | |
| Sunshine Curtain | O | |
| rain cover | O | |
| Heater | O | |
| Fans | O | |
| Reviewer mirror outside | S | |
| Central mirror inside | O | |
| Fire extinguisher | O | |
| Electric System | ||
| Radio with USB | S | |
| 9 inch touch screen | with reverse camera | O |
| Combination Meter | S | |
| Solar Panel | One piece 200W Solar Panel(1.22m x0.92m),the max is 3 pieces | O |
| LED Front Light | S | |
| Air Conditioner | With cool and warm function | O |
| Refrigerator | O | |
| Megaphone | for speaker inside | O |
